High Speed Uniplast Candy Forming Line

Continuous Cooker :


The product mass get cooked in stainless tell coil which goes to evaporation chamber & finally it reaches to vacuum vessel which is attached to vacuum pump.

Specification
Output : 500 kg/hr.
Length : 1.27 m
Width : 1.12 m
Height : 2.15 m
Weight : 660 kg
Power : 1 HP AC


Vacuum Pump :


7.5 HP Water Ring Vacuum Pump
Motor-7.5 HP 1440 rpm (Crompton or Hindustan)
S.S Impeller
S.S Side Plate
Center Body S.S Sleeve




Water Jacketed Cooling Table :


The cooling plate consists of smooth polished steel plate with cold water circulating channel underneath which ensures uniform cooling. It can be supplied with edged rails which also serves as a guide rail for product mass.

Specification
Batch Size : 45 kg
Length : 6ft
Width : 3ft
Height : 2.5ft
Weight : 240 kg


Rotary Sugar Kneader :


Homogenous addition of ingredients. Convenient table height. Rotating polished steel disc & cooling plate on the same plane eliminates laborious lifting & lowering of sugar mass.

Specification
Batch Size : 45 kg
Length : 1.92 m
Width : 1.75 m
Height : 1.56 m
Weight : 1500 kg
Power : 5 HP


Center Filling Pump :


Cone shaped stainless steel hopper with hot water jacket connected to extruder type pump which feeds the center premix through Teflon fill pipe. The filling percentage can be adjusted by variable drive.

Specification
Length : 0.75 kg
Width : 0.65 m
Height : 1.02 m
Weight : 50 kg / 110 lbs
Power : 1 HP





Batch Roller and Rope Sizer (5 stage) :


Batch Roller: Stainless steel trough is built up with stainless steel rotary conical roller which rotates clockwise & anti clockwise which converts the cooked mass into cone shape.
Rope Sizer: Rope speed is infinitely adjustable to feed the forming machine. The speed of equalizing roller is so co-ordinated to ensure equal feeding to successive rollers.

Specification
Batch Size : 80 kg
Length : 3.7 m
Width : 0.72 m
Height : 1.35 m
Weight : 1110 kg
Power : 1 HP Gear Motor + 3.5 HP AC
Rope Speed-10-50 meter per Minute


High Speed Sweet Former :


Completely seamless and pipless, filled & unfilled candies can be produced. The forming pressure is adjustable leading to produce variable size products. East changeable die set without any tools. The die drives through V-belt avoiding the damage during a mishap.

Specification
Output : 600 kg / hr
Length : 0.90 m
Width : 0.80 m Height : 1.70 m
Weight : 950 kg
Power : 5 HP AC


Cooling Conveyor :


The product is carefully and gently cooled from forming to packaging temperature by means of chilled air circulating through numerous ducts spreaded over the modular belt.

Specification
Output : 625 kg / hr.
Length : 5.25 m
Width : 1.37 m
Height : 1.90 m
Weight : 1560 kg / 3439.18 lbs
Power : 5 HP

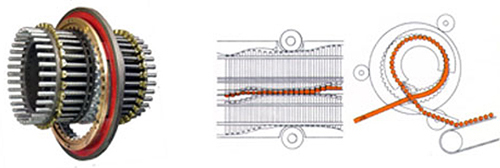

High Speed Sweet Forming Die :
